Operating Parameters: The rated voltage is 6000V, with custom options for 3000V and 10000V. It supports a voltage deviation of ±5%, a rated frequency of 50Hz, and a power factor of 0.9 (lead).

Mechanical Design: Features a cylindrical shaft extension. Rotation is typically anticlockwise from the collecting ring end, though clockwise versions are available. The stator leads include 6 terminals (U1, V1, W1, U2, V2, W2) led out via high-voltage cable or a customized junction box.

Starting & Excitation: The series utilizes a stationary controllable silicon exciter. It supports direct starting at full voltage or reduced voltage starting depending on grid capacity.

Component Details:

• Frame: Robust welded steel plate construction.

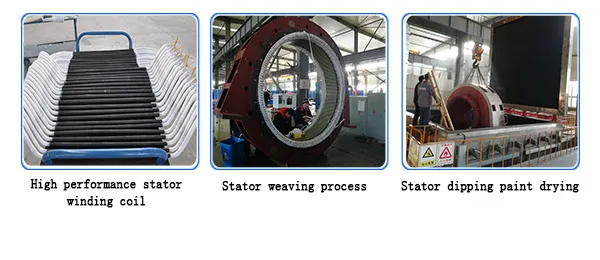

• Stator: Low-loss 0.5mm silicon steel plates with VPI (Vacuum Pressure Impregnation) insulation for moisture resistance and mechanical strength.
• Rotor: Magnetic poles made of stamped steel plates. Optional designs for pneumatic clutch applications are available.
• Bearings: Pedestal bearings (ring-oiled or combined) with insulating padding to prevent shaft current.
